Neo Panel System

PRODUCT DESCRIPTION

Neo Panel Formwork System is the most Economical and versatile System for verticals

Application

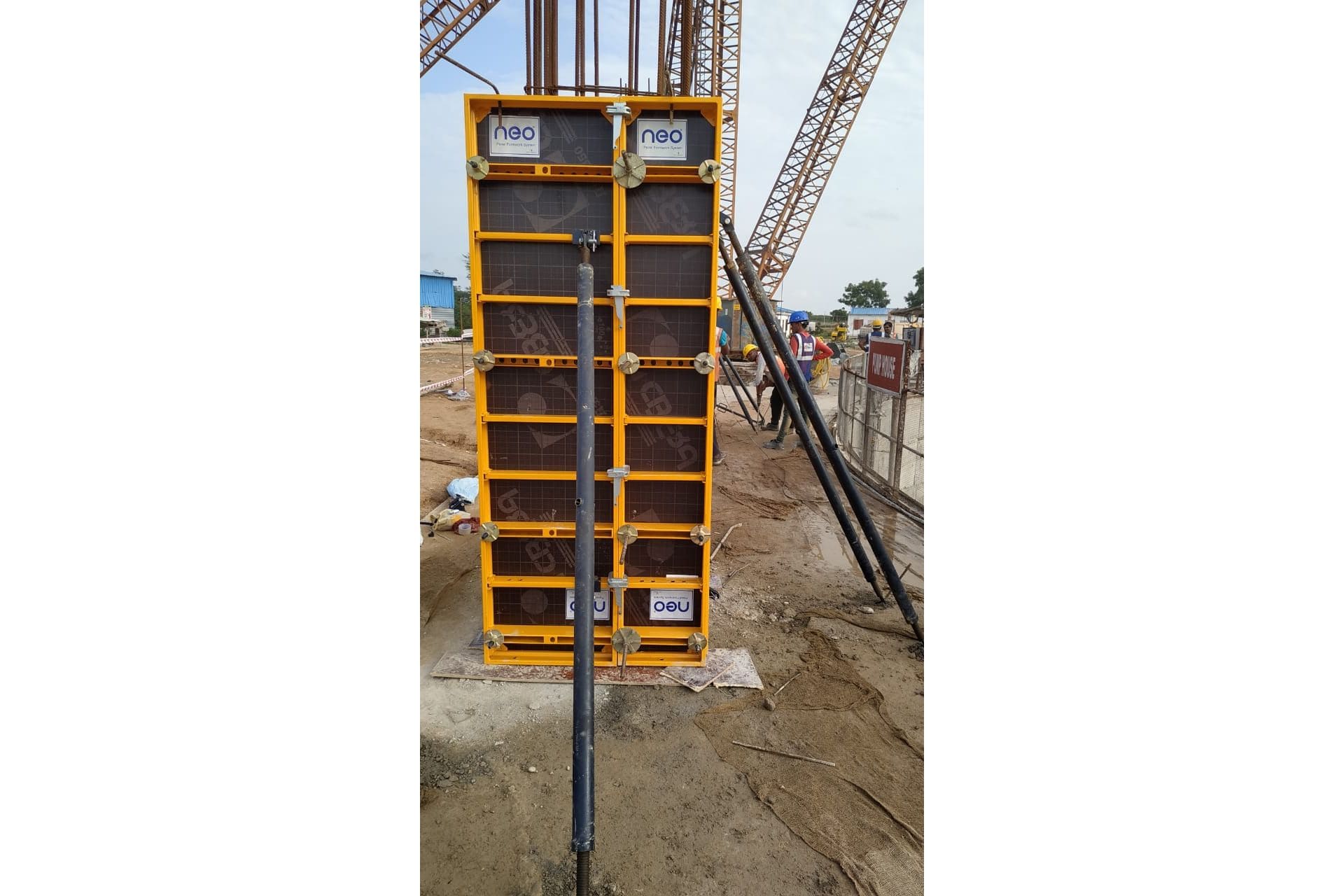

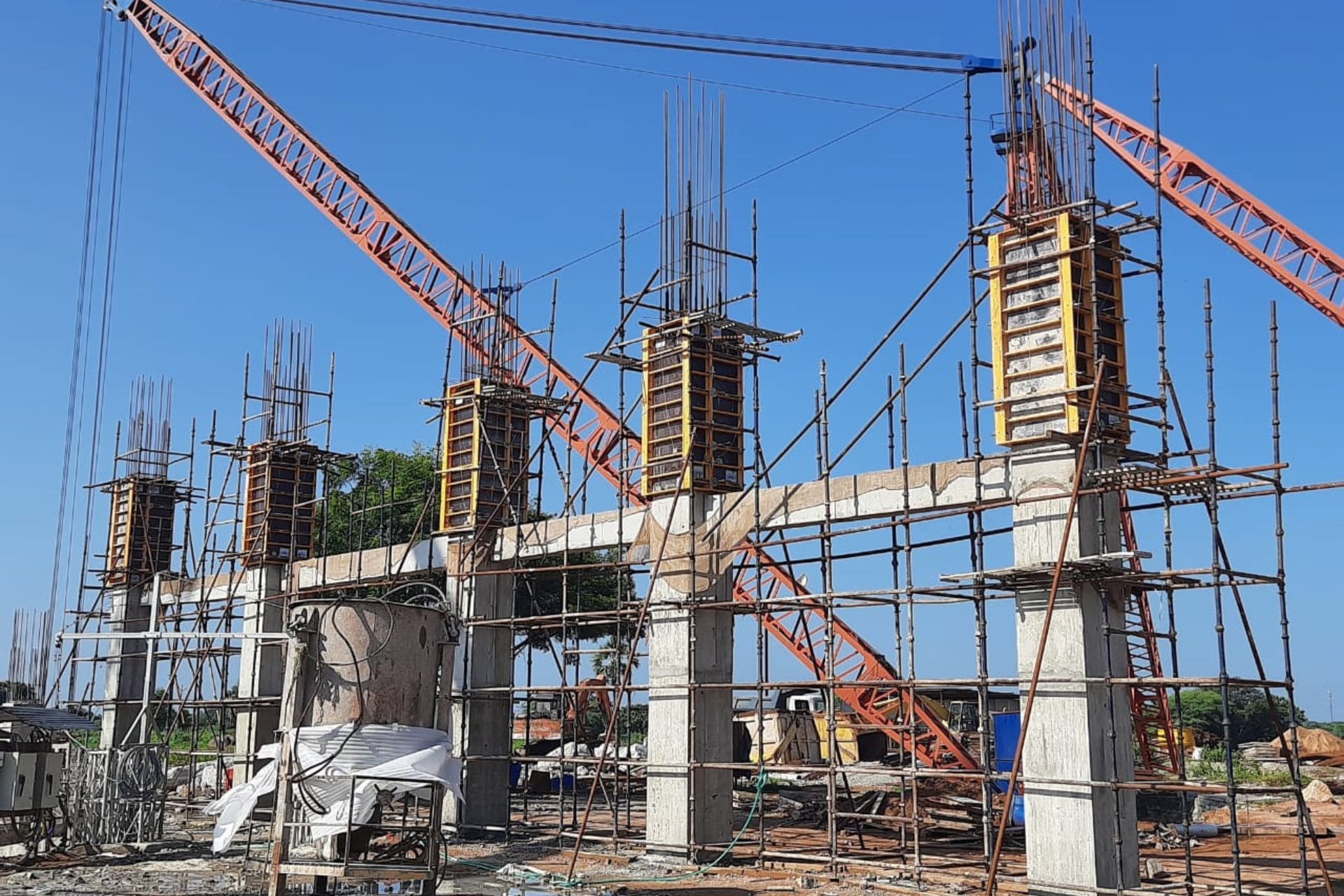

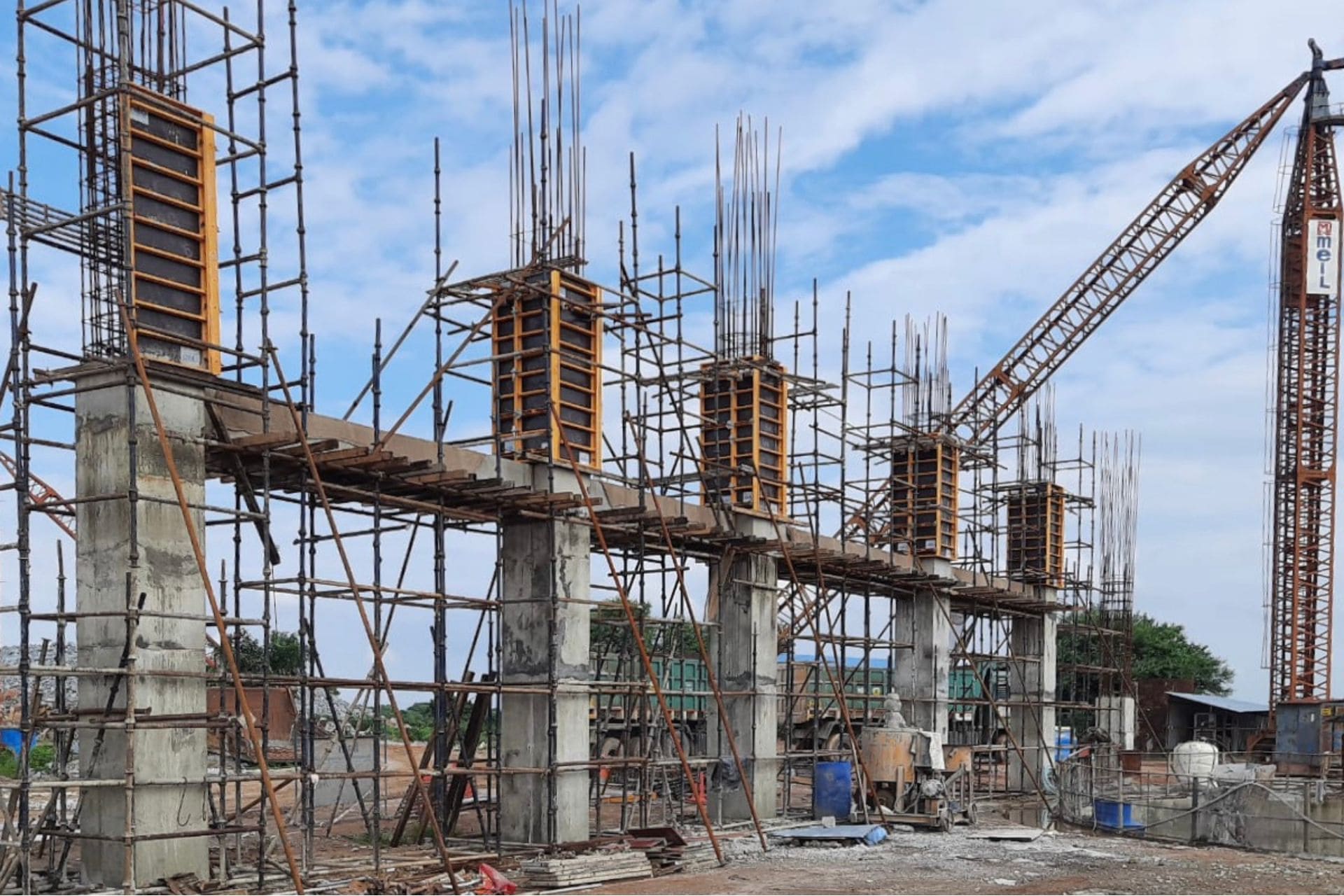

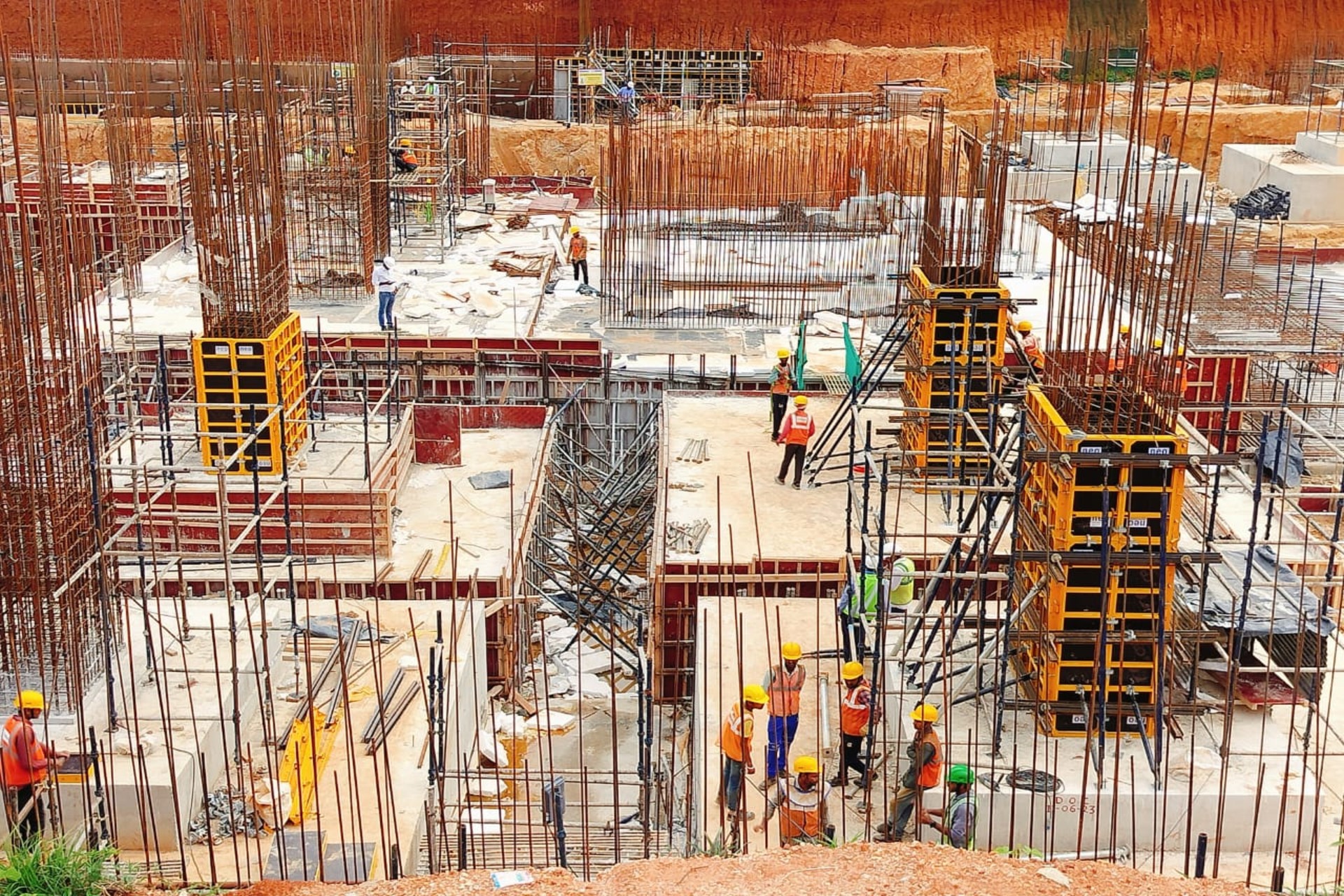

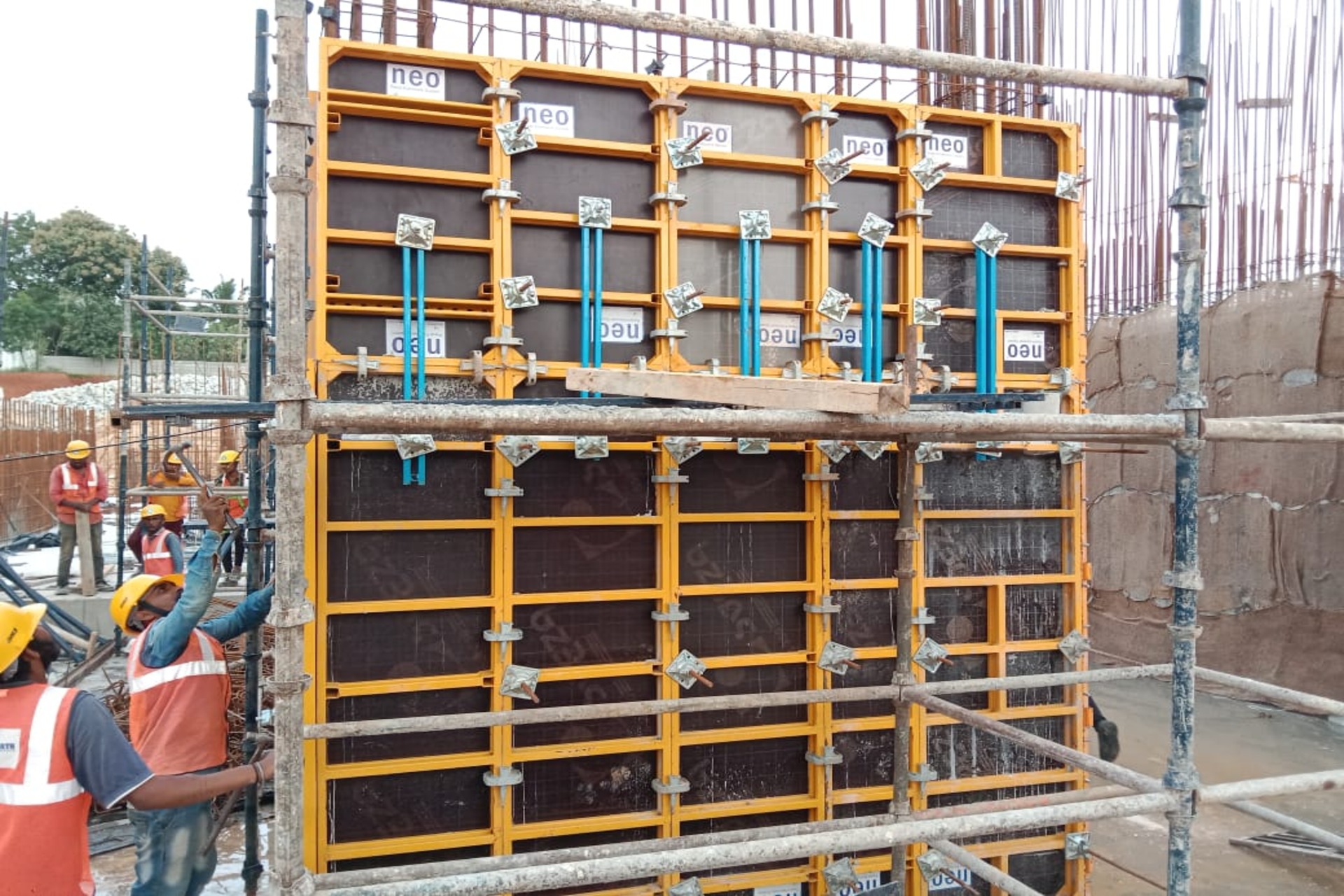

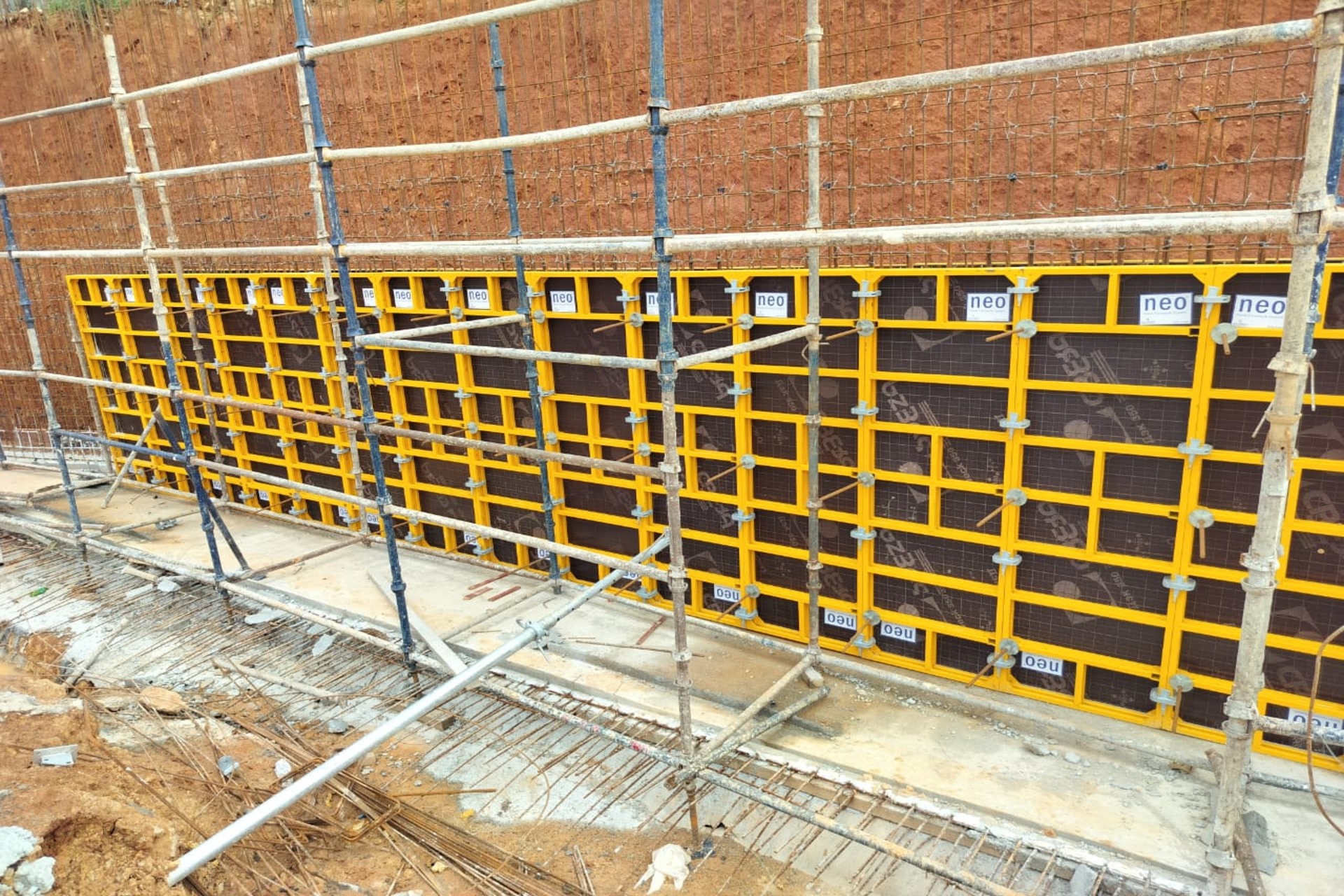

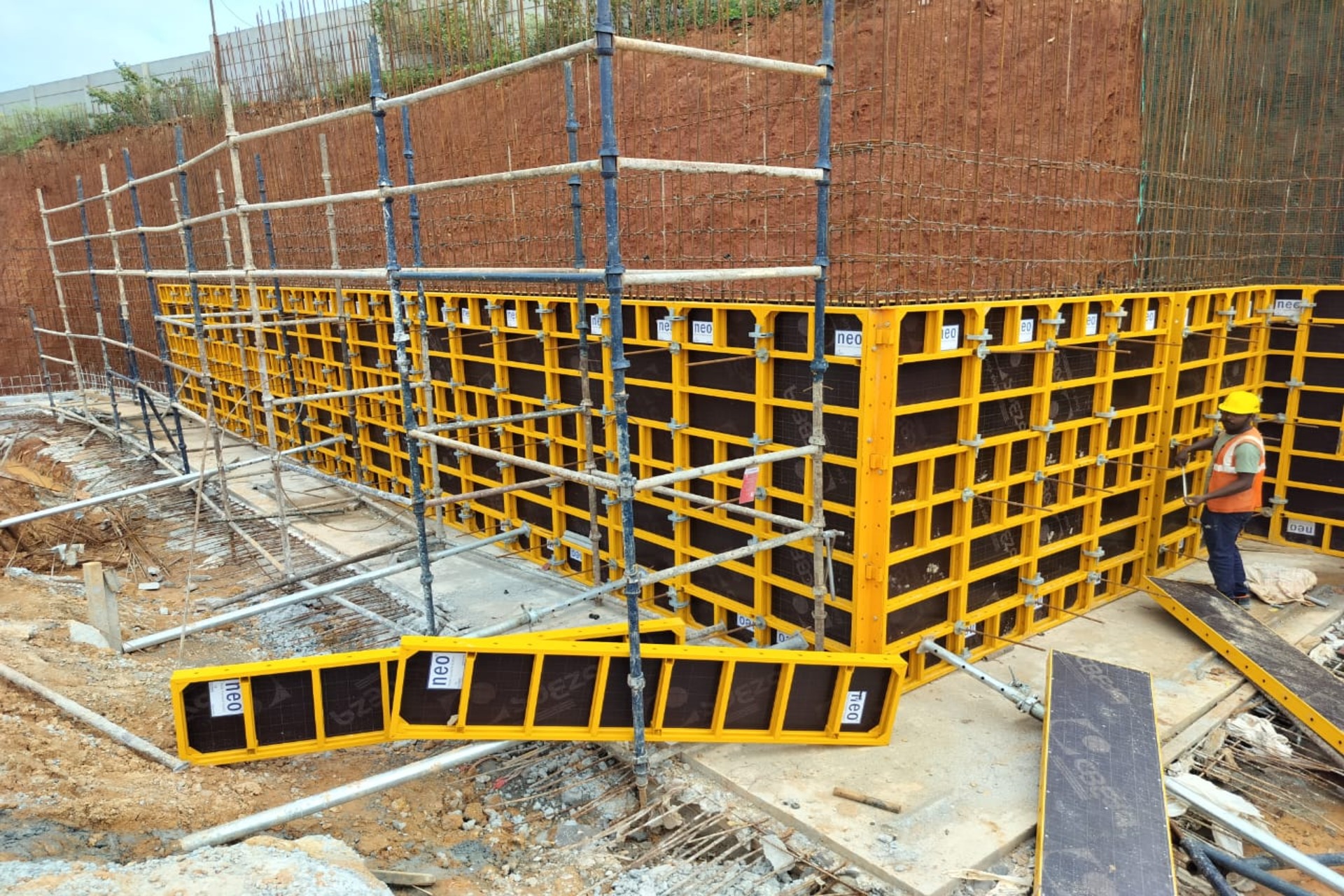

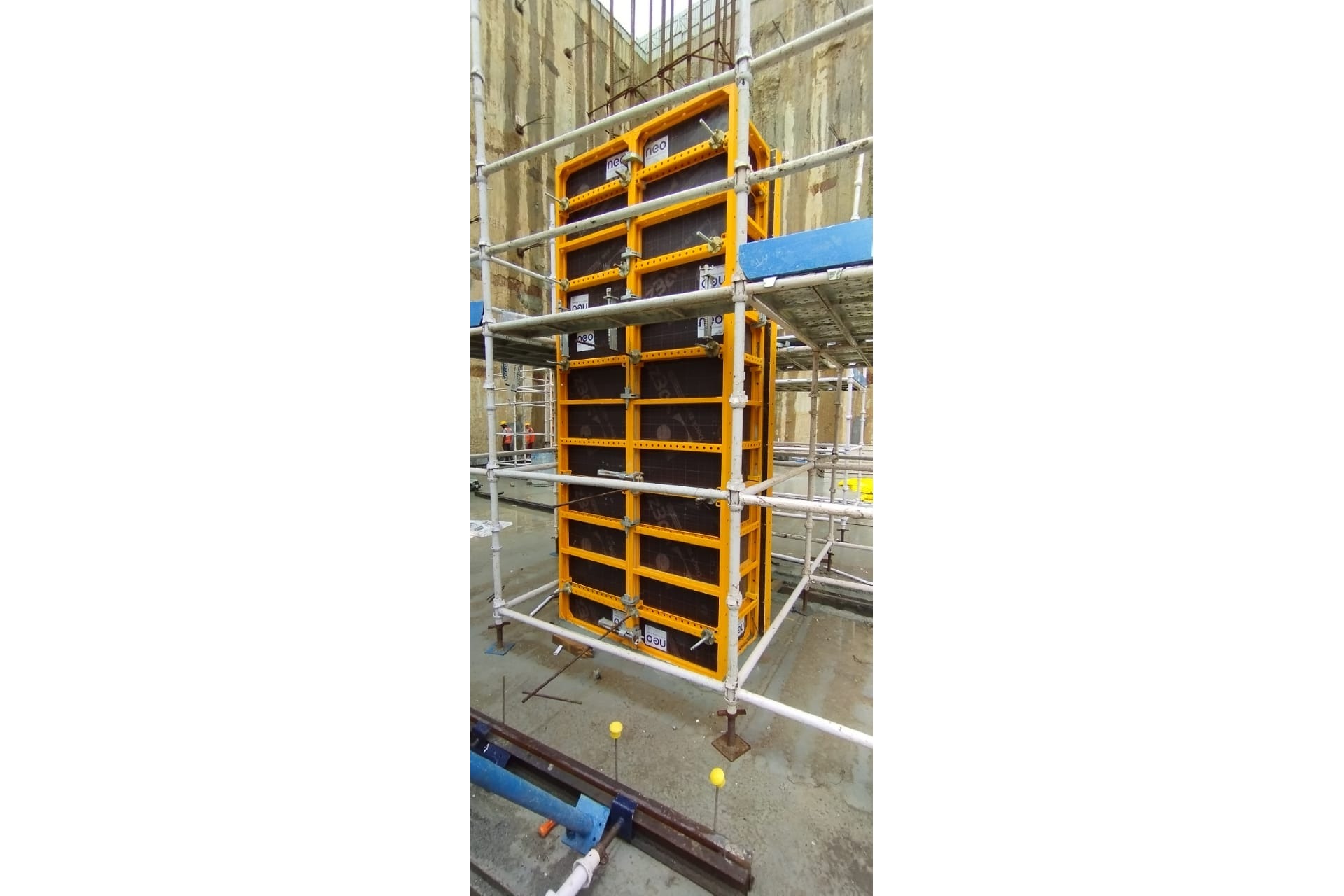

Neo Panel System is used for all type of Vertical Structures like Column, Retaining Wall, Core Wall etc.

Arrangement

Neo Panel System comes with completely ready to use Steel Panels which is to be fixed with Clamps.

Tie Rod and Super Plate is to be fixed in the Provision given in the Panels.

Advantages

Neo Panels are made out of Lightweight Structural grade Steel fixed with Birch Film Faced Plywood. and are Powder Coated for higher durability.

Neo Panels are designed for Max. Concrete Pressure of 70Kn/m2. So, No requirement of Wallers at all in this System.

High Labour Productivity due to the use of minimum components like – Neo Alumax Panel, Clamp, Tie Rod & Super plate, Prop.

No requirement of Crane as all the Panels is light in weight. Neo Panels weights 34.00 Kgs/Sq.mtr.

Also comes with Universal Panel option which can adjust the Panel to any size of Column with same Panel.

This system also comes with Working Platform arrangement along with Brackets for 2nd lift purpose.
